Main Technical parameters
NO. | Item | Unit | 100ton | ||
1 | Max, liquid pressure | Mpa | 25 | ||
2 | Max, opening height | mm | 800 | ||
3 | Slide stroke | mm | 500 | ||
4 | Working table size | mm | 700x620 | ||
5 | Ejecting force | ton | 20 | ||
6 | Ejecting stroke | mm | 200 | ||
7 | Displacement oil pump | Ml/r | 40 | ||
8 | Speed of slide | Descent | mm/s | 190 | |
Pressing | mm/s | 16-24 | |||
Return
| mm/s
| 86
| |||
9 | Motor power | kw | 7.5 | ||
10 | weight | kg | 2400 | ||

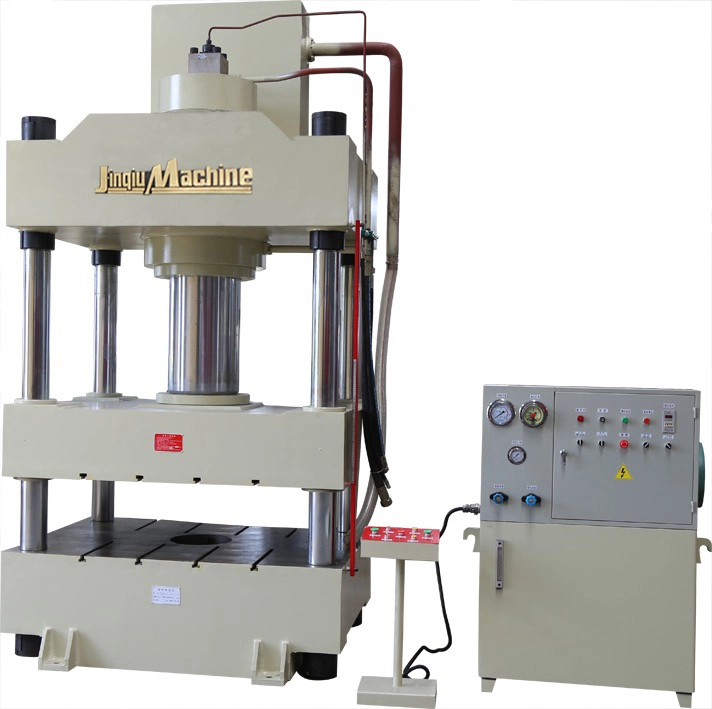

Reference Picture and Product Description
This machine has independent power sector and electrical systems, and the use of relay control, can implement adjustment and semi-automatic operation. The machine working pressure, sliding fast stroke range can be adjusted according to process requirements; and to complete the process of constant pressure forming two processes given way. Constant pressure molding method after the suppression of the process, with the holding pressure and delay automatic return action.
List of Key components
No. | Name | Producer |
1 | Major Low voltage electrical | Schneider |
2 | Pump | Taifeng China |
3 | Main Motor | Huanqiu China |
4 | Seal ring | NOK Japan |
5 | Hydrualic system | Taifeng China |
